Fluke 124S ScopeMeter with Software

Model: 124/003S | UPC: 095969234382

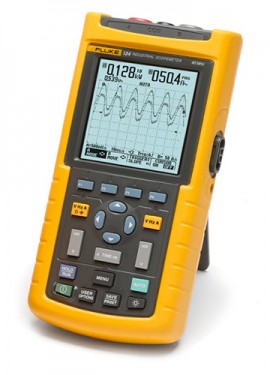

Fluke 124S ScopeMeter with Software-


Downloads: datasheet manual

Fluke 124S ScopeMeter with Software

Model: 124/003S

102mm monochrome LCD, 40MHz; 20 Recordings.

102mm monochrome LCD, 40MHz; 20 Recordings.

This product has been discontinued. Click here for the replacement model(s).


Recommended Accessories


Fluke 124/003S Offers

An everyday, easy-touse dual scope, meter and paperless recorder for industrial equipment service, maintenance and installation applications.

Display complex waveforms, determine industrial bus health or measure harmonics and power on industrial machinery.

Features

  • Dual-input TrendPlot™ paperless recorder plots and displays the actual ,minimum, maximum and average of any measurement up to 16 days with a resolution of 1.5 hours
  • Connect-and-View™ advanced triggering that recognizes signal patterns and automatically sets up and continuously adjusts triggering time base and amplitude
  • Measurements include: Vdc, Vac, Vac+dc, Vpeak max, Vpeak min, Vpeak to peak, frequency, positive and negative pulse width, positive and negative duty cycle, A AC, A DC, A AC+DC (with optional probe), phase, temperature (with optional probe), dBV, and dBm into 50Ω and 600Ω
  • Shielded test leads for oscilloscope, resistance and continuity measurements
  • Cursor measurements
  • Full bandwidth, VPS40 10:1 40 MHz probe included
  • Memory save and recall of 20 instrument screens with user set-ups and user text
  • 600V CAT III safety certified
  • Optically isolated RS-232 interface
  • Up to seven hours battery operation
  • Rugged compact case, IP51 drip and dust proof
  • Industrial Networks bus health testing (125)
  • Measure harmonics and power, VA, VAR, W, PF (125)

Functional Specifications

  • Display: 10.2 cm monochrome LCD
  • Bandwidth: 40
  • Number of inputs: 2; optional isolated external Trigger through ITP120
  • True-rms multimeter: Dual fully featured 5000 counts DMM
  • Dual input TrendPlot: Yes, with cursors
  • Trigger types: Connect-and-View™, free run, single shot, edge, video
  • Scope Envelope mode: Yes
  • Scope measurements: Cursors +26 automatic measurements
  • Bus Health Test function: For standard industry buses
  • Waveform mathematics: Harmonics mode

General Specifications

  • Power measurements: Power, VA, VAR, PF, Vpwm
  • Memory (screens/set-ups): 20
  • Safety certified (EN61010-1): 600 V CAT III (instrument and included accessories)

Fluke 124/003S Specifications

Specifications
Oscilloscope Bandwidth
40 MHz
Dual input True RMS Meter

Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test

Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset
TrendPlot Recording

Automatic vertical scaling and time compression.

Display the actual, MIN, MAX and AVG reading.
Cursors
∆T, 1/∆T, V, ∆V, rise- and fall time
Real-time sample rate

25 MS/s
Inputs and digitizers

2
Timebase range
20 ns - 1 min/div
Input sensitivity

5 mV - 500 V/div
Trigger types

Connect-and-View™, Free Run, Single Shot, Edge, Video, External
Glitch capture

40 ns
Scope measurements
Automatic 26
Maximum record length

512 min/max pts per input
Memory
20 screens and setups

Environmental Specifications
Operating Temperature

0 C to 50 C
Storage Temperature

-20 °C to +60 °C
Operating Altitude

3,000 m

Safety Specifications
Electrical Safety

600V CAT III (EN61010-1)

Mechanical & General Specifications
Size

232 x 115 x 50 mm
Weight

1.2 kg
Warranty

3 years parts and labor (one year on accessories)
Battery Life

7 hrs using NiMH
RS-232 Interface

Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC
Click here for complete specifications on the Fluke 124/003S

What's included with the Fluke 124/003S

  • Fluke AC120 Alligator clips
  • Fluke BB120 Shielded BNC adapter
  • Fluke VPS40 Voltage Probe, 40 MHz, 10:1
  • Getting started booklet
  • Fluke HC120 Hook Clips
  • Fluke PM8907 Battery Charger/Line Voltage Adapter
  • Fluke STL120 Shielded Test Lead Set
  • Fluke BP120 MH
  • User manual (CD-ROM)
Also comes with the SCC120 kit which includes:

  • Fluke C190 Hard Carrying Case;
  • Fluke OC4USB Optically isolated USB-Cable;
  • Fluke SW90W/034EFG FlukeView® Software for Windows. English, French and German language
The Fluke 124S ScopeMeter with SCC120 kit helps you get more out of your ScopeMeter by:


  • Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.
  • Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.
  • Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.




  • Windows 95/98/Me/NT4.0/2000/XP
  • Requires one free RS-232 port (COM port)
  • Requires optional PM9080 RS-232 Adapter/Cable
