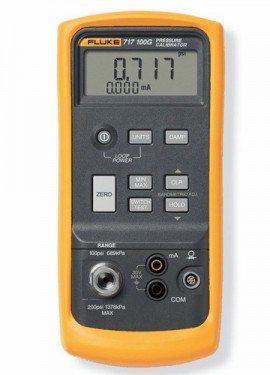

Fluke 717-3000G Pressure Calibrator

Model: 717-3000G | UPC: 095969327718

Fluke 717-3000G Pressure Calibrator-


Downloads: datasheet manual

Fluke 717-3000G Pressure Calibrator

Model: 717-3000G

Pressure Calibrator 0 to 3000 PSI, (0 bar to 207 bar, 0 to 20684.27 kPa).

Pressure Calibrator 0 to 3000 PSI, (0 bar to 207 bar, 0 to 20684.27 kPa).

Your Price $1739.99 USD
Availability 6 to 7 Weeks
Quantity

Add In-House Traceable Calibration to your 717-3000G

Add In-House Traceable Calibration to your 717-3000G


Fluke 717-3000G Offers

Features

  • 1/8 NPT female pressure fitting
  • Compatible with non-corrosive Gases and liquids
  • Zero, min, max, and hold functions
  • Calibrate P/I instruments with simultaneous pressure and current measurement
  • Error% calculation of mA measurements for quick pass-fail decisions
  • Long lasting battery life
  • Holster features test lead storage
  • Compatible with Toolpack magnetic hanging system
  • New switch test

Application Selection Guide

Fluke 754 Documenting Process Calibrator with HART communication Fluke 721 Dual Sensor Pressure Calibrators Fluke 719PRO Electric Pressure Calibrators Fluke 719 Pressure Calibrator Fluke 718 Series Pressure Calibrators Fluke 717 Series Pressure Calibrators Fluke 700G Series Pressure Test Gauge Fluke 3130-G2M Portable Pneumatic Pressure Calibrators Fluke 2700G Series Pressure Gauges Fluke Deadweight Testers
Model number 754 721/​721Ex 719Pro 719 718 717 700G 3130 2700G Dead-weight Testers
Application
Calibrating pressure transmitters (field) Ideal
Calibrating pressure transmitters (bench) Ideal
Calibrating HART Smart transmitters Ideal
Documenting pressure transmitter calibrations Ideal
Testing pressure switches in the field Ideal
Testing pressure switches on the bench Ideal
Documenting pressure switch tests Ideal
Testing pressure switches with live (voltage) contacts Ideal
Gas custody transfer computer tests Ideal
Verifying process pressure gauges (field) Ideal
Verifying process pressure gauges (bench) Ideal
Logging pressure measurements Ideal
Testing pressure devices using a reference gauge Ideal
Hydrostatic vessel testing Ideal
Leak testing (pressure measurement logging) Ideal
Pressure Calibration Selection Guide

Fluke 717-3000G Specifications

Measurement Accuracy
Pressure
717 Series
Measure Pressure (internal sensor)
Accuracy 0.05% full scale
Functions Zero, Min, Max, Hold, Damp

Note Gasses / liquids (non-corrosive)

Fluke 717 3000G
Range 0 to 3000 PSI, (0 bar to 207 bar, 0 to 20684.27 kPa)
Resolution 0.1 PSI, 0.01 bar, 1 kPa
Over Pressure 2 X full scale

Fluke 717 Series with Pressure Modules
Measure Pressure (via pressure module connector using optional Pressure Modules)
Range 29 pressure modules, 0-1 inH20 to 10,000 PSI, 2.5 mbar to 700 bar ranges. Over pressure per pressure module specs
Resolution Per pressure module specs
Accuracy per pressure module specs
Functions Zero, Min, Max, Hold, Damp
Current
Range: 0 to 24 mA (-25% to 125%)
Resolution 0.001 mA
Accuracy 0.015% + 2 counts

Specifications
Loop Power
Range 24 V dc
Accuracy +/- 10%

Note: Drive; 20 mA into 1000 ohms for battery >6.8V; 700 W for battery 5.8 to 6.8 V
Display

Clear 5 digit LCD

Environmental Specifications
Operating Temperature

-10 C to 55 C
Storage Temperature

-40 C to 60 C
Humidity (Without Condensation)

95% (10 C to 30 C)

75% (30 C to 40 C)

45% (40 C to 50 C)

35% (50 C to 55 C)
Operating Altitude

3,000 M max

Safety Specifications
Safety

CSA C22.2 No. 1010.1:1992

Mechanical & General Specifications
Size

201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
Weight

22 oz, approximately 600G with holster
Warranty

3 years
Shock & Vibration

Random, 2G, 5-500 Hz

1m drop test
Battery type

Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 717-3000G

What's included with the Fluke 717-3000G

  • Protective Yellow Holster with Test Lead Storage
  • Instructions Sheet (14 Languages)
  • Test Leads and Alligator Clips
  • NIST Traceable Calibration Report and Data
  • Single 9V Alkaline Battery
