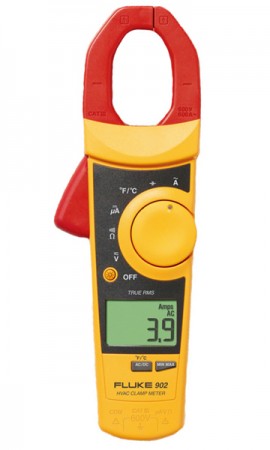

Fluke 902 True RMS HVAC/R Clamp Meter

Model: 902 | UPC: 095969332149

Be the first to review this product

Downloads: datasheet manual

Fluke 902 True RMS HVAC/R Clamp Meter

Model: 902

Be the first to review this product

True RMS, 600A AC, 600V AC/DC, Ohms, Continuity.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 902 FC True RMS Wireless HVAC/R Clamp Meter, CAT III 600V / CAT IV 300V

Model: 902 FC | Order No: 902FC

Save time reporting by emailing your measurements directly to your inbox from the field, and troubleshoot problems faster with TrendIt™. Reduce the risk of arc flash by separating yourself from the hazardous measurement situations with the Fluke Connect app.

Learn More

Recommended Accessories

Fluke TL224 SureGrip Silicone Insulated Test Leads

TL224

Fluke C1600 Meter and Accessories Gear Box

C1600

Fluke 80PK-8 Pipe Clamp Temperature Probe

80PK-8

Fluke AC220 SureGrip Alligator Clips

AC220

Fluke TLK291 Fused Test Probe Set

TLK291

Fluke 902 Offers

The set point and deadband are both easily adjustable via screws inside the cover.
For ease of installation, the switches come with a 1/4" female NPT process connection and can be mounted in any orientation.
A simple design makes it a great switch for an installer at any skill level.
Direct acting (NC) or reverse acting (NO) available depending on switch type and model number.

Specifications:

Voltage DC

Range: 0 – 600.0 V
Accuracy: 1% ± 5 counts

Voltage AC (True RMS)

Range: 0 – 600.0 V
Accuracy: 1% ± 5 counts (50/60 Hz)

Current AC (True RMS)

Range: 0 – 600.0 A
Accuracy: 2.0% ± 5 counts (50/60 Hz)

Current DC

Range: 0 - 200.0 µA
Accuracy: 1.0% ± 5 counts

Resistance

Range: 0 – 9999 Ω
Accuracy: 1.5% ± 5 counts

Temperature (Type K Thermocouple)

Range: -10 degree C to 400 degree C (-14 degree F to 752 degree F)
Accuracy: +/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
Range: -40 degree C to -10 degree C (-40 degree F to -14 degree F)
Accuracy: +/- 5.0% + 1.5 degree C (+/- 5.0% + 3.3 degree F) typical

Capacitance

Range: 1-1000 µF
Accuracy: 1.9% ± 2 counts
Continuity: <= 30 Ω

General Specifications

Weight: 1.5 lbs (.7 kg)
Dimensions: 10.75" x 4.25" x 2.44" (27.3 cm x 10.8 cm x 6.2 cm)
Battery type: (2) AA Alkaline Batteries

Facilities Maintenance Challenges and the Fluke Solutions

Facilities maintenance professionals face a wide range of challenges, from electrical and mechanical equipment uptime to overall safety concerns. It’s critical to maintain facilities and the associated assets at peak performance. Let's review the issues faced by maintenance managers, IT support, and electrical/mechanical technicians. Along with the Fluke solutions that offer to save you time and money while increasing efficiency and safety. Fluke makes reliable, rugged and accurate tools to maintain electromechanical systems, motors, pumps, electrical distribution systems and more to keep your world up and running.

Learn More

Facilities Maintenance Challenges and the Fluke Solutions

Fluke 902 Specifications

Specifications

Voltage DC

Range	0 - 600.0 V
Accuracy	1% ± 5 counts

Voltage AC (True RMS)

Range	0 - 600.0 V
Accuracy	1% ± 5 counts (50/60 Hz)

Current AC (True RMS)

Range	0 - 600.0 A
Accuracy	2.0% ± 5 counts (50/60 Hz)

Current DC

Range	0 - 200.0 µA
Accuracy	1.0% ± 5 counts

Resistance

Range	0 - 9999 Ω
Accuracy	1.5% ± 5 counts

Continuity

<= 30 Ω

Temperature*
(Type K Thermocouple)

Range	-10 degree C to 400 degree C (-14 degree F to 752 degree F)
Accuracy	+/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
Range	-40 degree C to -10 degree C (-40 degree F to -14 degree F)
Accuracy	+/- 5.0% + 1.5 degree C (+/- 5.0% + 3.3 degree F) typical

Capacitance

Range	1-1000 µF
Accuracy	1.9% ± 2 counts

* Error does not include Type K Thermocouple errors

Mechanical & General Specifications

Weight

1.5 lbs (.7 kg)

Dimensions

10.75" x 4.25" x 2.44" (27.3 cm x 10.8 cm x 6.2 cm)

Battery type

(2) AA Alkaline Batteries

Click here for complete specifications on the Fluke 902

What's included with the Fluke 902

AA Alkaline batteries (2)
Users manual w/safety information
Soft carrying case
Fluke TL75 Test Leads (1 pair)
Fluke 80BK Integrated DMM Temperature Probe (1)
