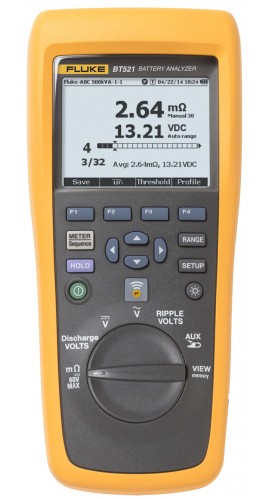

Fluke BT521 Advanced Battery Analyzer

Model: BT521 | UPC: 095969727266

Fluke BT521 Advanced Battery Analyzer-


Downloads: datasheet manual

Fluke BT521 Advanced Battery Analyzer

Model: BT521

Comes equipped with the BTL21 intelligent test probe set, this battery analyzer is designed to take measurements on stationary batteries of all types. Additionally, this tool covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing.

Comes equipped with the BTL21 intelligent test probe set, this battery analyzer is designed to take measurements on stationary batteries of all types. Additionally, this tool covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing.

Your Price $4899.99 USD
Availability 1 in Stock
Quantity

Recommended Accessories


Fluke BT521 Offers

Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.

Ideal test tool for maintenance, troubleshooting, and performance testing of individual stationary batteries and battery banks used in critical battery backup applications. The intuitive user interface, compact design, and rugged construction ensure optimum performance, test results, and reliability. The battery analyzer covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system.

Features

  • Key measurements: Internal battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and temperature
  • Sequence measurement mode: Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, and resistance, eliminating the need to press a button each time a measurement needs to be saved
  • Comprehensive logging: All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis
  • Optimized user interface: Quick, guided setup ensures you’re capturing the right data every time, and the combined visual and audio feedback cues reduce the risk of measurement confusion
  • Threshold comparison: Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues
  • Ergonomic test leads: Rugged coaxial two pole kelvin test pins with remote SAVE button reduce test time and increase efficiency
  • Intercell strap resistance test and data management: Measures the resistance of the intercell connection between batteries in a string
  • Test probe extenders: Long reach, straight and angled probes for double stacked cells
  • Intelligent test probe set: Integrated LCD display, infrared temperature measurement, verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated save button
  • Enhanced data analysis: Quickly compare trends, analyze results and create reports with included battery management software
  • Easy reporting: Generate PDF report on the PC software with analysis graphics and data table or quick email format report with csv file on the mobile app
  • Wireless communication: For data download and remote display while measuring. Browse and email measurement data via iOS app
  • Battery life: 7.4 V 3000 mAh lithium-ion battery for more than eight hours continuous operation
  • USB port: For fast data download to supplied data analysis and report management application software
  • Highest safety rating in the industry: CAT III 600 V, 1000 V dc maximum rated for safe measurements all around the battery power supply equipment

Voltage and resistance thresholds

Allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion.

Fluke Battery Management software

Allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance (requires Software Management software version 1.0.69 or later) readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.

Applications

  • Maintenance
  • Troubleshooting
  • Performance testing of individual stationary batteries and battery banks used in critical battery backup

Fluke BT521 Specifications

Battery Resistance/Strap Resistance
Range 3 mΩ
30 mΩ
300 mΩ
3000 mΩ
Resolution 0.001 mΩ
0.01 mΩ
0.1 mΩ
1 mΩ
Accuracy 1% + 8
0.8% + 6
V DC
Range 6 V
60 V
600 V
Resolution 0.001 V
0.01 V
0.1 V
Accuracy 0.09% + 5
V AC (45 to 500 Hz with 800 Hz filter)
Range 600 V
Resolution 0.1 V
Accuracy 2% + 10
Frequency
Range 500 Hz
Resolution 0.1 Hz
Accuracy 0.5% + 8
AC Voltage Ripple (20 KHz Max)
Range 600 mV
6000 mV
Resolution 0.1 mV
1 mV
Accuracy 3% + 20
3% + 10
A DC/A AC (with i410)
Range 400 A
Resolution 1 A
Accuracy 3.5% + 2
Temperature
Range 32 to 140°F (0 to 60°C)
Resolution 1°C
Accuracy 4°F (2°C)
General Specifications
Meter Mode 999 records for each measurement position with time stamp
Sequence Mode Up to 100 profiles and 100 profile templates (each profile stores up to 450 batteries) with time stamp
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 122°F (-20 to 50°C)
Battery charging: 32 to 104°F (0 to 40°C)
Operating Humidity Non-condensing (50 °F [10°C])
≤80% RH (at 50 to 86°F [10 to 30°C])
≤75 % RH (at 86 to 104°F [30 to 40°C])
Altitude Operating: Sea level to 2000 meters
Storage: Sea level to 12,000 meters
IP Rating IP40
Radio FCC Class A
Vibration Requirements MIL-PRF-28800F: Class 2
Drop Test Requirements 1 meter
Temperature Coefficients Add 0.1 x specified accuracy for each °C above 28°C or below 18°C
Safety Compliance 600 V CAT III
EMC IEC 61326
Protection Class 2 Pollution Degree II
Battery Compliance UN38.3
UL2054
IEC62133
2G per IEC68-2-26, 25G, and 29
Screen Dimensions 3 x 2.2" (7.7 x 5.6 cm)
Interface USB mini
Dimensions 9 x 4 x 2" (22 x 10.3 x 5.8 cm)
Weight 1.9 lb (850 g)
Click here for complete specifications on the Fluke BT521

What's included with the Fluke BT521

  • Battery Analyzer
  • 4-Wire Test Pin Set
  • Basic Test Lead Set
  • TwistGuard™ Test Leads with Adapter
  • Intelligent Test Probe Set with Extender and Temperature Sensor
  • AC/DC Current Clamp
  • Standard Mini-b USB Cable
  • 2 x Spare Fuses
  • Shoulder Strap
  • Belt Strap
  • Magnetic Hanging Strap
  • 100 x Paper Battery Tags
  • Soft Carrying Case
  • 18 V AC Charger
  • 7.4 V 3000 mAh Lithium-Ion Battery
  • Fluke Battery Management (CD) Containing USB Driver and Manuals in All Languages

Click on a category to view a selection of compatible accessories with the Fluke BT521 Advanced Battery Analyzer.

Fluke i410 AC/DC Current Clamp I410
The current clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC currents. The large clamp claw gives you access to difficult to reach areas.




Fluke BC500 AC Power Charger BC500
Replacement or AC space charger for Fluke 500 Series Battery Analyzers. Provides power cord operation and charging for Fluke 500 Series Battery Analyzers.








Fluke BT500 Probe Tip BT500-PROBE-TIP
10 Count Replacement Probe Tips and covers.












Fluke BTL20 Test Probe Set with Extender BTL20
Test Probe Set with Extender. No Temperature Sensor.




Fluke BTL21 Probe Set with Extender and Temp Sensor BTL21
Test Probe Set with Extender & Temperature Sensor.
