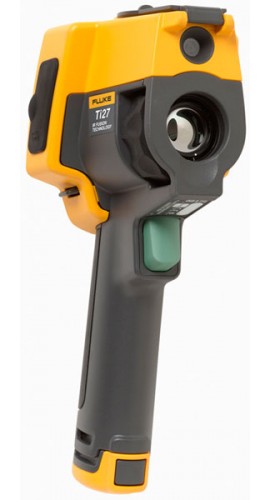

Fluke Ti27 Thermal Imager

Model: Ti27-60Hz | UPC: 095969592697

Fluke Ti27 Thermal Imager-


Downloads: datasheet manual

Fluke Ti27 Thermal Imager

Model: Ti27-60Hz

For Electrical/Industrial applications. Features a 240 x 180 60Hz infrared sensor with 0.05°C thermal sensitivity and IR Fusion image blending. Optional field upgradeable lenses.

For Electrical/Industrial applications. Features a 240 x 180 60Hz infrared sensor with 0.05°C thermal sensitivity and IR Fusion image blending. Optional field upgradeable lenses.

This product has been discontinued. Click here for the replacement model(s).


Fluke TI27-60HZ Offers

The P3 Series is comprised of some of the more superior Industrial Thermal Imagers, making it simple and efficient to capture images and analyze data.

Features

  • Its Focal Plane Array (FPA) uncooled microbolometer detector gives an IR resolution of 240 X 180, capturing a detailed image displaying all problematic areas clearly in 43, 200 pixels
  • Thermal sensitivity of ≤0.045°C makes finding any problems quick and simple
  • Optimized for measuring temperatures ranging from -4°F to 1112°F (-20°C to 600°C)
  • Offers the sharpest images in the industry thanks to its combination or thermal sensitivity, spatial resolution and high definition display
  • Its one handed easy-to-use interface helps to navigate all the controls with just the simple use of your thumb
  • Comes with Fluke's own patented IR-Fusion® Technology, allowing you to blend visual and infrared images together for easier and a curate analysis of the problem at hand.

Applications

  • Industrial: Monitor mechanical, electromechanical and general building maintenance.
  • Process: Inspect refractory insulation, tank and vessel levels, steam systems and traps, pipes and valves, etc.
  • Electrical: Monitor unbalanced loads, overloaded systems, wiring problems or component failure, etc.

Discover your Thermal Imager

  • Understand the importance of image quality
  • How to better manage your data
  • How our tools are designed for your work environments
  • The ROI you can expect from thermal imaging
  • Learn the importance of innovative solutions that make it simple and easy to capture
  • Analyze and manage thermal imaging
  • Find out why hundreds of professionals choose Fluke thermal imaging
Download the Advanced Thermal Imaging Buyers Guide

Fluke Ti27-60Hz Specifications

Temperature measurement range (no calibrated below -10 °C)
-20 °C to +600 °C (-4 °F to +1112 °F)
Temperature measurement accuracy
+/- 2 C or 2 % (at 25 C nominal, whichever is greater)
Emissivity correction, reflected background temperature compensation, transmission correction
Yes
Image capture frequency
60 Hz and 9 Hz models
Detector type
Focal Plane Array, uncooled Microbolometer, 240 x 180 pixels
Thermal sensitivity (NETD)
? 0.05 C at 30 C target temp. (50mK)
File formats (on imager)
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
Palettes
8 standard, 8 Ultra Contrast
Color alarms (temperature alarms)
High-temperature alarm (user-selectable)
Batteries
Two lithium-ion rechargeable smart battery packs
Battery life
4+ hours continuous use per battery pack
Drop test
2 meter (6.5 feet) with standard lens
Click here for complete specifications on the Fluke Ti27-60Hz
  • SmartView analysis and reporting software
  • 2GB SD memory card
  • Multi-function card reader for downloading images into your computer
  • Rugged hard carry case and portable soft carry case
  • Hand strap, for right of left-handed use
  • 2 Lithium-Ion removeable and rechargeable smart batteries
  • AC charger/power supply and two-bay external charger with mains adapters
  • Printed Users Manuals (16 languages available)

Optional Accessories

  • Fluke TI-CAR Charger (Car charger)
  • Fluke FLK-LENS/TELE1 (Telephoto infrared lens)
  • Fluke FLK-LENS/WIDE1 (Wide-angle infrared lens)
  • Fluke BOOK-ITP (Introduction to Thermography Priciples Book)
  • Fluke FLK-TI-SBP3 (Additional Smart Battery)
  • Fluke FLK-TI-SBC3 (Additional Smart Battery Charger)
  • Fluke FLK-TI-VISOR (Thermal Imager Visor)
  • Fluke TI-TRIPOD (Tripod mounting accessory)

Fluke SmartView® software is included with all Fluke Thermal Imagers. This powerful software provides a suite of tools that views, optimizes, annotates, and analyzes IR images. It also generates fully customizable and professional-looking reports with the push of a button or in a few easy steps. The Fluke SmartView software is not only easy to use for customers with basic needs, but it also delivers the performance that advanced users require for detailed analysis and reporting.

Fluke SmartView enhances your thermal images:

Image viewing and optimization

  • Displays an array of open images for convenient viewing and analysis
  • Displays the temperature at any given point
  • Optimize images by adjusting level & span, image parameters, add markers, and more!

Extensive annotation possibilities

  • Add annotations to images in the camera or in the PC software
  • Input information such as locations, problem description, recommended actions, and other notes
  • Reference images can be linked together for good/bad and before/after analysis
  • Annotations can be automatically included in reports
  • Review voice annotations captured in the field by the imager

Detailed analysis and total image control

  • A complete set of marker tools are provided (Hot and Cold points, user defined markers, etc.)
  • Use 3D-IR™ to view images from different perspectives, identify additional problems, and eliminate false positives the ultimate analysis tool for your digital infrared thermal imaging needs
  • IR-Fusion®: Five viewing modes enable image optimization based on application needs

Simplified report generation

  • Generate professional customized reports fast
  • One-click report generation for a quick result
  • Choice of features including before/after, IR plus visible light, annotations, supporting data and graphics
  • Report wizard guides the user through advanced report generation

System requirements

  • Windows ® XP SP2/Vista/7
  • A web browser for product registration and web updates. Internet Explorer 5.0 or newer
  • 512 MB of RAM minimum (1 GB for Vista or 7)
  • 360 MB of hard disk space for product installation
  • 16-bit color, 1024 x 768 resolution video or better
  • Color printer for printing the images
  • CD-ROM drive (for installing SmartView software)

Click on a category to view a selection of compatible accessories with the Fluke Ti27 Thermal Imager.





Fluke TI-VISOR Thermal Imager Visor TI-VISOR
For use with Fluke Ti-series Thermal Imagers.




Fluke BOOK-ITP Introduction to Thermography Principles Book BOOK-ITP
Provides an overview of the latest information on the safe, efficient, and practical use of thermal imagers. Full-color, soft-cover book that depicts and describes many thermal images of electrical, electro-mechanical, HVAC/R, process, and building inspection applications with real-world examples illustrate commercial, industrial, municipal, and residential environments and applications.




Fluke TI-TRIPOD Tripod Mounting Base Accessory TI-TRIPOD
Tripod Mounting Base Accessory for Fluke thermal imagers.




Fluke FLK-100-CLKT C-Range IR Window 4" (100mm) FLK-100-CLKT
C-Range IR Window for Outdoor and Indoor Applications, 4" (100m) with KWIK Twist.




Fluke FLK-075-CLKT C-Range IR Window 3" (75mm) FLK-075-CLKT
3" (75mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.




Fluke FLK-050-CLKT C-Range IR Window 2" (50mm) FLK-050-CLKT
2" (50mm) C-Range IR Window for indoor and outdoor applications, with KWIK Twist Key that easily swivels off.
