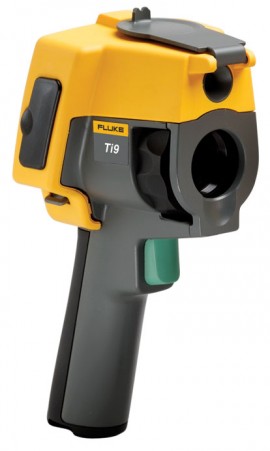

Fluke Ti9 Thermal Imager

Model: TI9/9HZ | Order No: TI9-9HZ | UPC: 095969492225

Fluke Ti9 Thermal Imager-


Downloads: datasheet manual

Fluke Ti9 Thermal Imager

Model: TI9/9HZ | Order No: TI9-9HZ

Entry-level thermal imager for general purpose applications. Features a 160x120 infrared detector with 0.20°C thermal sensitivity and a temperature measurement range of -20 to 250°C (-4 to 482°F).

Entry-level thermal imager for general purpose applications. Features a 160x120 infrared detector with 0.20°C thermal sensitivity and a temperature measurement range of -20 to 250°C (-4 to 482°F).

This product has been discontinued. Click here for the replacement model(s).


Fluke TI9-9HZ Offers

The 160 x 120 resolution shows all the essential details. That greatly increases the speed of inspecting, repairing and verifying electrical and (electro)mechanical equipment. It also helps extend equipment lifetime and avoid electrical fires.

Features

  • Delivers the clear, crisp images needed to find problems fast.
  • Optimized for field use in harsh work environments.
  • Engineered and tested to withstand a 2 m (6.5 ft) drop—When was the last time you dropped a tool?
  • Withstands dust and water—tested to an IP54 rating.
  • Intuitive, three-button menu is easy to use—simply navigate with the push of a thumb.
  • Adjustable hand strap for left-or right-handed use.

Specifications

  • Temperature measurement range: -20 to 250°C (-4 to 482°F)
  • Accuracy: ±5°C or 5%
  • Field of view: 23° x 17°
  • Focus: Manual
  • Image frequency: 9 Hz refresh rate
  • Detector type: 160 X 120 focal plane array, uncooled microbolometer
  • Thermal sensitivity (NETD): ≤0.2°C at 30°C (200 mK)

Fluke TI9/9HZ Specifications

Temperature
Temperature Range-20 °C to +250 °C (-4 °F to +482 °F)
Accuracy± 5 °C or 5 % (at 25 °C nominal, whichever is greater)
Emissivity correctionIn software
Reflected background temperature compensationIn software
Image Performance
Image capture frequency9 Hz refresh rate
Detector type160 X 120 Focal Plane Array, uncooled microbolometer
Thermal sensitivity (NETD)< 0.20 °C at 30 °C target temp. (200 mK)
Infrared field of view23 ° x 17 °
Spatial resolution (IFOV)2.5 mRad
Minimum infrared focus distance15 cm (approx. 6 in)
Focus mechanismManual, one-handed Smart Focus capability
Image Presentation
PalettesIronbow, Blue-Red, High Contrast, Grayscale
Level and spanSmooth auto-scaling and manual scaling of level and span
Minimum span (in manual mode)5 °C (9 °F)
Minimum span (in auto mode)10 °C (18 °F)
Image capture and data storage
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Storage mediumSD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations (when available), or 3000 basic bitmap (.bmp) images transferrable to PC via included multi-format USB card reader
File formatsNon-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometic bitmap (.bmp) files
Export file formats w/SmartView® softwareBMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory reviewSequential image navigation and review
General Specifications
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 95 % non-condensing
Display9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustmentsUser selectable temperature scale (°C/°F)Language selectionTime/Date setUser selectable backlight: "Full Bright" or "Auto"
SoftwareSmartView® full analysis and reporting software included
BatteriesInternal rechargeable battery pack (included)
Battery lifeThree to four hours continuous use (assumes 50 % brightness of LCD)
Battery charge time2.5 hours to full charge
AC battery chargingAC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included.
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power savingSleep mode activated after ?ve minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standardsCSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibilityMeets all applicable requirements in EN61326-1:2006
C TickIEC/EN 61326-1
US FCCCFR 47, Part 15 Class B
Vibration0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock25 g, IEC 68-2-29
Drop2 meter (6.5 feet)
Size (H x W x L)26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in)
Weight (battery included)1.2 kg (2.6 lb)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo-years (standard)
Recommended calibration cycleTwo-years (assumes normal operation and normal wear)
Supported LanguagesCzech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Click here for complete specifications on the Fluke TI9/9HZ

What's included with the Fluke TI9/9HZ

  • Fluke Ti9 (9Hz) Thermal Imager
  • SmartView® analysis and reporting software
  • 2 GB SD card
  • SD card reader
  • hard and soft carrying case
  • hand strap
  • rechargeable battery
  • AC charger/power supply
  • training DVD
