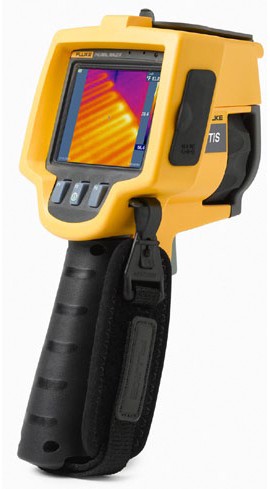

For rapid visual temperature analysis. Features a 120 x 120 infrared detector with 0.1° 9Hz thermal sensitivity.
For rapid visual temperature analysis. Features a 120 x 120 infrared detector with 0.1° 9Hz thermal sensitivity.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
The TiS is the most affordable building inspection thermal imager on today's market that meets the required RESNET infrared inspection standards.
Features
Applications
| Temperature |
|
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +100 °C (-4 °F to +212 °F) |
| Temperature measurement accuracy |
± 5 °C or 5 % (at 25 °C nominal, whichever is greater) |
| Imaging performance |
|
| Image capture frequency |
9 Hz refresh rate |
| Detector type |
120 X 120 Focal Plane Array, uncooled microbolometer |
| Thermal sensitivity (NETD) |
≤ 0.1 °C at 30 °C target temp. (100 mK) |
| Infrared spectral band |
7.5 μm to 14 μm (long wave) |
| Standard infrared lens type |
Field of view: 17° x 17° Spatial resolution: (IFOV) 2.50 mRad Minimum focus distance: 15 cm (approx. 6 in) |
| Focus mechanism |
Versatile, one-handed manual focus |
| Image presentation |
|
| Palettes |
Ironbow, Blue-Red, Grayscale |
| Level and span |
Smooth auto-scaling and lock of level and span |
| Minimum span (in auto mode) |
5 °C (9 °F) |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Storage medium |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR images annotations, or 3000 basic bitmap (.bmp) images, transferrable to PC via included multi-format USB card reader |
| File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2) No analysis software required for non-radiometic bitmap (.bmp) files |
| Export file formats w/SmartView® software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Memory review |
Sequential image navigation and review |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity |
10 % to 95 % non-condensing |
| Display |
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover |
| Controls and adjustments |
User selectable temperature scale (°C/°F) Language selection Time/Date set User selectable backlight: "Full Bright" or "Auto" |
| Software |
SmartView® full analysis and reporting software included |
| Batteries |
Internal rechargeable battery pack (included) |
| Battery life |
Three to four hours continuous use (assumes 50 % brightness of LCD) |
| Battery charge time |
2.5 hours to full charge |
| AC battery charging |
AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included |
| AC operation |
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz), ac mains adapters included |
| Power saving |
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity |
| Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| Electromagnetic compatibility |
Meets all applicable requirements in EN61326-1:2006 |
| C Tick |
IEC/EN 61326-1 |
| US FCC |
CFR 47, Part 15 Class B |
| Vibration |
0.03 g2/Hz (3.8 grms), IEC 68-2-6 |
| Shock |
25 g, IEC 68-2-29 |
| Drop |
2 meter (6.5 feet) |
| Size |
(H x W x L) 26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in) |
| Weight (battery included) |
1.2 kg (2.6 lb) |
| Enclosure rating |
IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty |
Two-years (standard) |
| Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
| Supported Languages |
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, and (Dutch and Hungarian in
manual only) |
Click on a category to view a selection of compatible accessories with the Fluke TiS Thermal Imaging Scanner.
