Fluke 435-II Power Quality and Energy Analyzer

Model: 435-II | UPC: 095969615563

Fluke 435-II Power Quality and Energy Analyzer-


Downloads: datasheet manual

Fluke 435-II Power Quality and Energy Analyzer

Model: 435-II

Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics with this power quality and energy analyzer. Quickly understand the capacity of your existing electrical panels, troubleshoot circuit breaker trips and uncover and monetize energy costs.

Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics with this power quality and energy analyzer. Quickly understand the capacity of your existing electrical panels, troubleshoot circuit breaker trips and uncover and monetize energy costs.

Your Price $7999.99 USD
Availability 4 in Stock
Quantity

Fluke 435-II Offers

Advanced power quality functions, unprecedented energy analysis capabilities

Power quality issues may affect the operation of critical loads and impact on your bottom line negatively. Think of this power quality and energy analyzer as an insurance policy. The user can calculate the cost of wasted energy due to poor power quality, and troubleshoot the source of power quality or motor performance issues. Additionally, it's designed to provide the user with the data needed to quickly get to the root of the problem.

  • Quickly see how much money you’re losing due to energy waste in terms of real dollars
  • Easily see how motor startups are affecting motor drive performance
  • Get at-a-glance power quality health data in real-time so you can make better maintenance decisions
  • Capture every measurement automatically without any set-up so you don’t have to worry about not having the right data
  • Measure all three phases and neutral with the included flexible current probes

* View data locally on the instrument, via Fluke Connect mobile app and PowerLog 430-II desktop software


Features
  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
  • Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • PowerWave data capture: Captures fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
  • Waveform capture: Captures 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up
  • Automatic Transient Mode: Captures 200 kHz waveform data on all phases simultaneously up to 6 kV
  • Fully Class-A compliant: Conducts tests according to the stringent international IEC 61000-4-30 Class-A standard
  • Mains signaling: Measures interference from ripple control signals at specific frequencies
  • Troubleshoot: Analyze the trends using the cursors and zoom tools
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View graphs and generate reports: With included analysis software
  • Battery life: Up to 8 hours operating time per charge on Li-ion battery pack
  • Wireless data download: Download data to PC wirelessly and capture screens using Fluke Connect App
  • Measure multiple parameters simultaneously to quickly understand overall power quality health
  • View data as simple digital values or more detailed trend graphs that give you fast insight into changes over time, waveforms, and phasor diagrams
  • Organize data in tabular format so you can quickly correlate parameters like magnitude, duration, and time to the issues you are experiencing in your facility

Applications
  • Frontline troubleshooting: Quickly diagnose problems on-screen to get your operation back online
  • Long-term analysis: Uncover hard-to-find or intermittent issues
  • Load studies: Verify the available electrical system capacity before adding loads
  • PowerWave data capture: Capture every waveform for up to 5 minutes along with fast RMS values so you can determine how the voltage, current and frequency values are interacting
  • Power inverter efficiency: Measure the input and output power simultaneously to discover whether the inverter is optimized for its application
  • Energy monetization: Calculate the fiscal cost of energy waste due to poor power quality
  • Energy assessment: Quantify the before and after installation improvements in energy consumption to justify energy saving devices
  • Predictive maintenance: Periodic benchmarking of the power system can help detect and prevent power quality issues before they cause downtime
Energy savings

Traditionally energy savings are achieved by monitoring and targeting, or in other words, by finding the major loads in a facility and optimizing their operation. The cost of power quality could only be quantified in terms of downtime caused by lost production and damage to electrical equipment. The unified power measurement (UPM) method now goes beyond this to achieve energy savings by discovering the energy waste caused by power quality issues. Using the unified power measurement, the energy loss calculator will determine how much money a facility is losing due to waste energy.

Unbalance

UPM gives a more comprehensive breakdown of the energy consumed in the plant. In addition to measuring reactive power (caused by poor power factor), UPM also measures the energy waste caused by unbalance; the effect of unevenly loading each phase in three-phase systems. Unbalance can often be corrected by reconnecting loads on different phases to ensure the current drawn on each phase is as equal as possible. Unbalance can also be corrected by installing an unbalance reactance device (or filter), that will minimize the effects. Correcting unbalance should be basic good housekeeping in the facility as unbalance problems can cause motor failure or shorten equipment life expectancy. Unbalance also wastes energy. Using UPM can minimize or eliminate that energy waste.

Harmonics

UPM also provides details of the energy wasted in your facility due to the presence of harmonics. Harmonics may be present in your facility due to the loads you operate or may be caused by loads in adjacent facilities. The presence of harmonics in your facility can lead to:

  • Overheating transformers and conductors
  • Nuisance tripping of circuit breakers
  • Early failures of electrical equipment

Quantifying the cost of wasted energy due to the presence of harmonics simplifies the return-oninvestment calculation needed to justify purchasing harmonic filters. By installing a harmonic filter the ill effects of harmonics can be reduced and energy waste eliminated, resulting in lower operational costs and more reliable operation.

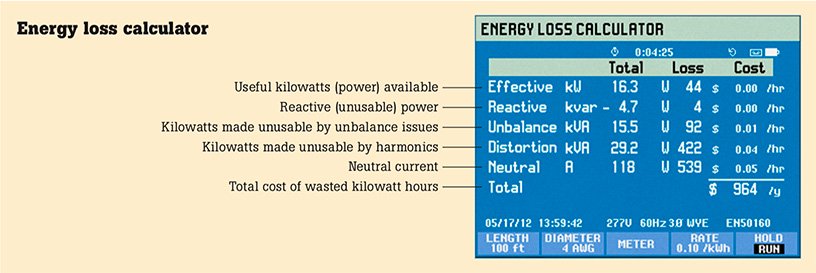

Energy loss calculator - calculate money lost to energy waste in terms of real dollars

It’s a simple fact, poor power quality can have a big impact on the bottom line. This power quality analyzer enables you to identify issues and measure energy loss giving you specific insight into the amount of loss in dollars associated with things like effective power and with poor power quality characteristics such as reactive power, unbalance, distortion, or neutral current. The power anlayzer even offers users the flexibility to input cable length and cable diameter so you can calculate loss due to conductor sizing (Or use AUTO mode if you don’t know your cable specification) and enter up to four unique time-dependent daily rates (kWh) for more accurate calculations. Armed with this critical data users can easily justify the investment necessary to take countermeasures.

Powerful troubleshooting capabilities

Specifically designed with the needs maintenance engineers and technicians in mind; users who need to get to the solution of the power quality problem as quickly as possible so that they can minimize expensive downtime. The measurement process and display of data is optimized to get to the most important information as quickly as possible. Multiple parameters are measured simultaneously and displayed in formats that quickly describe the state of the power quality of the system. Data can be quickly accessed as simple digital values, trend graphs, waveforms, phasor diagrams or analyzed and organized into tabular format such as the event data where the magnitude, duration and time stamping enable rapid correlation to problems experienced.

AutoTrend - Quickly see the trend

Unique autotrend gives you fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process. You can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral.

The system - monitor overview screen

Instant insight into whether the voltage, harmonics, flicker, frequency and the number of dips and swells fall outside the set limits. A detailed list is given of all events falling outside the set limits.

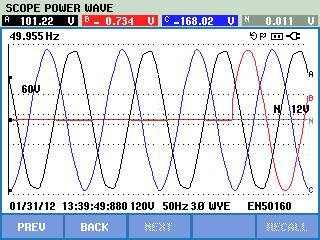

PowerWave data capture

For some users, load switching is a cause of power quality problems. When loads switch on, the current draw sometimes causes the voltage to drop to a level that causes other equipment to malfunction. The PowerWave function a enables users to capture voltage, current and frequency signals simultaneously at a high speed to see which interaction is potentially causing problems. PowerWave goes beyond standard power quality measurements; PowerWave's fast data capture mode enables system dynamics to be characterized.

Waveforms for voltage and current are continuously captured for the specified time, and are displayed on screen in high detail; the power waveform is derived from the data. In addition, half-cycle RMS values for voltage, current, power and frequency can be stored and retrieved for analysis. This feature is particularly useful for testing of standby generation systems and UPS systems where reliable switch-on can be vital.

PowerWave data capture - quickly identify how motor and generator startups are impacting equipment performance
With PowerWave data capture you can capture three-phase high resolution voltage and current waveforms for up to five minutes along with detailed RMS voltage and current values. By analyzing the interaction of these values over time you can correlate the effects of voltage, current and frequency during the critical startup of motors and generators. PowerWave even goes beyond the standard power quality measurements allowing you to record half cycle rms values on 8 channels, frequency and instantaneous power (Vrms1/2, Arms1/2, W, Hz and scope waveforms for voltage, amps and watts).

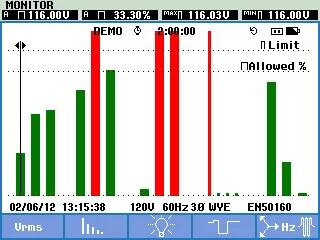

Advanced power quality health

Advanced power quality health - at-a-glance power quality health data in real-time so you have the data you need, when you need it
This power analyzer utilize an integrated power quality health summary that gives you an at-a-glance view of a complete range of power quality issues in real time. With a simple graphical presentation, complete with tolerance limits, you can quickly discover which power quality problems may be present on your electrical system. If you don’t know where to start or what problems might exist the advanced power quality health summary will simplify the task.

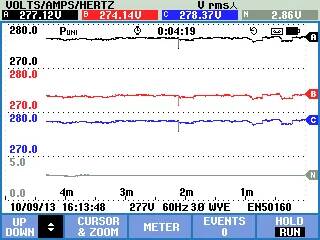

Power inverter efficiency

Power inverters take DC current and transform it into AC current, or vice versa. Solar generation systems usually include an inverter that takes the DC energy from the solar cells and converts it to useful AC power. Inverters can lose performance over time and need to be checked. By comparing the input power with the output power you can determine the system efficiency. This energy analyzer can measure the efficiency of such inverters by simultaneously measuring the DC and AC power of a system to determine how much power is lost in the conversion process.

With a unique autotrend feature you can get fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process So you can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral.

Unified power measurement

Previously, only experts could calculate how much energy was wasted due to power quality issues; utilities could calculate the cost, but the required measurement process was beyond the reach of average electricians. With this patented unified power function you can use one handheld tool to determine how much power is being wasted, and calculate exactly what the extra consumption costs.

The patented unified power measurement system provides the most comprehensive view of power available, measuring:

  • Parameters of classical power (Steinmetz 1897) and IEEE 1459-2000
  • Detailed loss analysis
  • Unbalance analysis

These UPM calculations are used to quantify the fiscal cost of energy loss caused by power quality issues. The calculations are computed, along with other facility-specific information by an Energy Loss Calculator that ultimately determines how much money a facility loses due to wasted energy.

SystemMonitor - check performance against EN50160 with ease

The unique system-monitor gives you an overview of power system performance (there is no button or single function) and checks the compliance of incoming power to EN50160 limits or to your own custom specifications. The overview is shown on a single screen, with color-coded bars clearly indicating which parameters fall outside the limits.

Logging function allows you to customize measurement selections and provides instantaneous analysis of user-selectable parameters.

Measure and record power (W), VA and VARs, PF and energy consumption.

Track harmonics up to the 50th, and measure and record THD in accordance with IEC61000-4-7 requirements.

Fluke 435-II Specifications

Volt
Vrms (AC + DC) Measurement range: 1 to 1000 V phase to neutral
Resolution: 0.01 V
Accuracy: ±0.1% of nominal voltage1
Vpk Measurement range: 1 to 1400 Vpk
Resolution: 1 V
Accuracy: 5% of nominal voltage
Voltage Crest Factor (CF) Measurement range: 1.0 > 2.8
Resolution 0.01
Accuracy: ±5%
Vrms1/2 Resolution: 0.1 V
Accuracy: ±0.2% of nominal voltage
Amps
i430-Flex 1x Measurement range: 5 to 6000 A
Resolution: 1 A
Accuracy: ±0.5% ±5 counts
i430-Flex 10x Measurement range: 0.5 to 600 A
Resolution: 0.1 A
Accuracy: ±0.5% ±5 counts
1mV/A 1x Measurement range: 5 to 2000 A
Resolution: 1 A
Accuracy: ±0.5% ±5 counts
1mV/A 10x Measurement range: 0.5 to 200 A (AC only)
Resolution: 0.1 A
Accuracy: ±0.5% ±5 counts
i430-Flex Measurement range: 8400 Apk
Resolution: 1 Arms
Accuracy: ±5%
1mV/A Measurement range: 5500 Apk
Resolution: 1 Arms
Accuracy: ±5%
Click here for complete specifications on the Fluke 435-II

What's included with the Fluke 435-II

  • Power Quality and Energy Analyzer
  • 4 x 24" (61 cm) Flexible Current Probes
  • Test Lead & Alligator Clip Set
  • Clips and Regional Decals
  • 8 GB SD Card
  • USB Cable
  • Carrying Case
  • Power Adapter
  • International Plug Adapter Set
  • Single Capacity 28 Wh Li-Ion Battery
  • PowerLog on CD (Includes Operator Manuals in PDF Format)
Fluke 434-II Power Quality and Energy Analyzer Fluke 435-II Power Quality and Energy Analyzer Fluke 437-II Power Quality and Energy Analyzer
Model Fluke 434-II Fluke 435-II Fluke 437-II
Standard compliance IEC 61000-4-30 Class S IEC 61000-4-30 Class A IEC 61000-4-30 Class A
Volt Amp Hz
Dips and swells
Harmonics
Power and energy
Energy loss calculator
Unbalance
Monitor
Inrush
Event waveform capture
Flicker
Transients
Mains signaling
Power wave
Power inverter efficiency
400Hz
C1740 Soft Case
C437-II Hard Case with rollers
SD card (Max 32 GB) 8 GB 8 GB 8 GB

All models include the following accessories TL430 test lead set, 4 x i430 thin flexi current probes, BP290 battery, BC430 power adapter with international power adapter set, USB cable A-B mini and PowerLog CD.

Perform custom analysis and create reports with included software. Measurement data can also be exported to common spreadsheet programs.

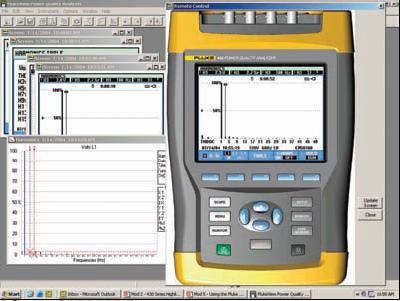

Fluke Power Log Software Screen

Generate reports and view graphs with Fluke Power Log Software

Designed to quickly view recorded data, the included Power Log software displays all recorded parameters on interactive trends. Generate a professional report with the 'Report Writer' function, or copy and paste images into report document manually.

FlukeView Power Quality Analyzer Software (SW43W) offers you simple mouse-controlled tools to work with your Power Quality Analyzer.

The FlukeView software communicates with your Power Quality Analyzer via the optically isolated OC4USB adapter/cable connected to the USB of the PC. The OC4USB driver creates a virtual COM port. FlukeView will handle the USB port as a COM port.

  • Capture measurement screens for professional-looking reports
  • Log readings to your computer disk drive
  • Works with Windows® word processing, spreadsheet and analysis software
  • Windows® 3.1, Windows® 95 and Windows® NT compatible

Note:
The optional RS-232 adapter/cable PM9080 allows you to communicate via a COM port of your PC.

Fluke: Which Power Quality Tool do I need to do my job?


This video will teach the user how to select a power quality tool depending on their job. There are 3 kinds of power quality tools for 3 phases: loggers (Fluke 1736), trouble shooters (Fluke 435) or recorders (Fluke 1750).

How To Connect Using The Phasor Diagram On A Fluke 435 Series II Power Quality Analyzer


In this video, the user will learn how to turn on and configure their power quality and energy analyzer for the power network that they're working with. This instrument will also allow the user to Quickly understand the capacity of your existing electrical panels, troubleshoot circuit breaker trips and uncover and monetize energy costs.

Differences Between The Logging Capture Interval and Sample Rate on a Fluke 435 Series II


In this video, the viewer will learn the difference between a logging capture interval and a sample rate on this power quality and energy analyzer.

How To Perform A Logger Set-Up On The Fluke 435 Series II Power Quality Analyzer_


This video will serve as a tutorial on how to use the instruments logger function. The logger function allows the user to configure which measurements they would want to record and the document before beginning a power quality test.

How To Perform A Trend Configuration On The Fluke 435 Series II Power Quality Analyzer


In this video, the user will learn how to set up this three-phase power quality and energy analyzer for trending. Power quality issues may affect the operations of critical loads. Also, it may have a negative impact on the user's bottom line.

How To Check For Voltage Dips And Swells Using The Fluke 435


This video will teach the user how to set up their three-phase power quality and energy analyzer to measure dips and swells. Power quality issues may negatively impact the user's bottom line. Furthermore, these issues can as well affect the operations of critical loads.

How To Use A Harmonics Test In A Fluke 435 Power Quality Analyzer


This video will serve as a tutorial video that will teach the user how to use the harmonics test on this three-phase power quality and energy analyzer. One thing to keep in mind is that the event counter is always on. Therefore, even during a harmonics test, this instrument can still detect other voltage events.

How To Transfer Data From The Fluke 435 To The Power Log Software


There are a few ways to transfer the data to your computer. This video will show a step by step tutorial that will teach you how to transfer data from your 3-phase power quality and energy analyzer to the power log software using the SD card.

How To Perform A Transient Capture On The Fluke 435 II Power Analyzer


This video is a step by step tutorial on how to set this power quality and energy analyzer to capture transients. Additionally, this instrument helps locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems.

Webinar: Introduction to Portable Precision Power Analyzers with Fluke


This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab, or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
During our 1-hour webinar, we've covered:
- The new Fluke Norma 6000 Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is not a Power Quality Analyzer.
- It is a Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is designed to be used in the field, its rugged, battery-operated, lightweight, and suited to use outside of a laboratory environment.
- You’ll learn why it can help you, where and how it is used.

Click on a category to view a selection of compatible accessories with the Fluke 435-II Power Quality and Energy Analyzer.

Fluke BC430 Line Voltage Adapter/Battery Charger BC430/830
Universal plug-in battery charger and line power wall transformer for 430X Series power quality analyzers and 120B Series ScopeMeters.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Fluke WC100 multi color wire clips WC100
For use with Fluke 430-Series power quality analyzers.




Fluke AC285 SureGrip™ Alligator Clips AC285
Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.




Fluke i6000s Flex-24 AC Current Probe I6000S-FLEX-24
Flexible 24" 6000A AC current probe with BNC terminated lead.




Fluke i310s Current Probe I310S
AC/DC Clamp. Features a range of 30A and 300A AC & 45A and 450A DC.




Fluke i30s AC/DC Current Clamp I30S
30A AC/DC current clamp with BNC terminated lead.




Fluke i5sPQ3, 5A AC Current Clamps, 3-pack I5SPQ3
A pack of 3 pieces of the i5s current clamps, specially configured to provide low current accuracy while taking measurements on secondary current transformers.




Fluke i5S AC Current Clamp 5A I5S
5A Clamp-on CT for Fluke 434. Part # i5S.




Fluke i400S AC Current Clamp I400S
For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




Customer Reviews for the Fluke 435-II

Ask a question about Fluke 435-II Power Quality and Energy Analyzer

Fluke 435-II Offers

Advanced power quality functions, unprecedented energy analysis capabilities

Power quality issues may affect the operation of critical loads and impact on your bottom line negatively. Think of this power quality and energy analyzer as an insurance policy. The user can calculate the cost of wasted energy due to poor power quality, and troubleshoot the source of power quality or motor performance issues. Additionally, it's designed to provide the user with the data needed to quickly get to the root of the problem.

  • Quickly see how much money you’re losing due to energy waste in terms of real dollars
  • Easily see how motor startups are affecting motor drive performance
  • Get at-a-glance power quality health data in real-time so you can make better maintenance decisions
  • Capture every measurement automatically without any set-up so you don’t have to worry about not having the right data
  • Measure all three phases and neutral with the included flexible current probes

* View data locally on the instrument, via Fluke Connect mobile app and PowerLog 430-II desktop software


Features
  • Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
  • Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
  • PowerWave data capture: Captures fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
  • Waveform capture: Captures 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up
  • Automatic Transient Mode: Captures 200 kHz waveform data on all phases simultaneously up to 6 kV
  • Fully Class-A compliant: Conducts tests according to the stringent international IEC 61000-4-30 Class-A standard
  • Mains signaling: Measures interference from ripple control signals at specific frequencies
  • Troubleshoot: Analyze the trends using the cursors and zoom tools
  • Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
  • Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places
  • Automatic Trending: Every measurement is always automatically recorded, without any set-up
  • System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
  • Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
  • View graphs and generate reports: With included analysis software
  • Battery life: Up to 8 hours operating time per charge on Li-ion battery pack
  • Wireless data download: Download data to PC wirelessly and capture screens using Fluke Connect App
  • Measure multiple parameters simultaneously to quickly understand overall power quality health
  • View data as simple digital values or more detailed trend graphs that give you fast insight into changes over time, waveforms, and phasor diagrams
  • Organize data in tabular format so you can quickly correlate parameters like magnitude, duration, and time to the issues you are experiencing in your facility

Applications
  • Frontline troubleshooting: Quickly diagnose problems on-screen to get your operation back online
  • Long-term analysis: Uncover hard-to-find or intermittent issues
  • Load studies: Verify the available electrical system capacity before adding loads
  • PowerWave data capture: Capture every waveform for up to 5 minutes along with fast RMS values so you can determine how the voltage, current and frequency values are interacting
  • Power inverter efficiency: Measure the input and output power simultaneously to discover whether the inverter is optimized for its application
  • Energy monetization: Calculate the fiscal cost of energy waste due to poor power quality
  • Energy assessment: Quantify the before and after installation improvements in energy consumption to justify energy saving devices
  • Predictive maintenance: Periodic benchmarking of the power system can help detect and prevent power quality issues before they cause downtime
Energy savings

Traditionally energy savings are achieved by monitoring and targeting, or in other words, by finding the major loads in a facility and optimizing their operation. The cost of power quality could only be quantified in terms of downtime caused by lost production and damage to electrical equipment. The unified power measurement (UPM) method now goes beyond this to achieve energy savings by discovering the energy waste caused by power quality issues. Using the unified power measurement, the energy loss calculator will determine how much money a facility is losing due to waste energy.

Unbalance

UPM gives a more comprehensive breakdown of the energy consumed in the plant. In addition to measuring reactive power (caused by poor power factor), UPM also measures the energy waste caused by unbalance; the effect of unevenly loading each phase in three-phase systems. Unbalance can often be corrected by reconnecting loads on different phases to ensure the current drawn on each phase is as equal as possible. Unbalance can also be corrected by installing an unbalance reactance device (or filter), that will minimize the effects. Correcting unbalance should be basic good housekeeping in the facility as unbalance problems can cause motor failure or shorten equipment life expectancy. Unbalance also wastes energy. Using UPM can minimize or eliminate that energy waste.

Harmonics

UPM also provides details of the energy wasted in your facility due to the presence of harmonics. Harmonics may be present in your facility due to the loads you operate or may be caused by loads in adjacent facilities. The presence of harmonics in your facility can lead to:

  • Overheating transformers and conductors
  • Nuisance tripping of circuit breakers
  • Early failures of electrical equipment

Quantifying the cost of wasted energy due to the presence of harmonics simplifies the return-oninvestment calculation needed to justify purchasing harmonic filters. By installing a harmonic filter the ill effects of harmonics can be reduced and energy waste eliminated, resulting in lower operational costs and more reliable operation.

Energy loss calculator - calculate money lost to energy waste in terms of real dollars

It’s a simple fact, poor power quality can have a big impact on the bottom line. This power quality analyzer enables you to identify issues and measure energy loss giving you specific insight into the amount of loss in dollars associated with things like effective power and with poor power quality characteristics such as reactive power, unbalance, distortion, or neutral current. The power anlayzer even offers users the flexibility to input cable length and cable diameter so you can calculate loss due to conductor sizing (Or use AUTO mode if you don’t know your cable specification) and enter up to four unique time-dependent daily rates (kWh) for more accurate calculations. Armed with this critical data users can easily justify the investment necessary to take countermeasures.

Powerful troubleshooting capabilities

Specifically designed with the needs maintenance engineers and technicians in mind; users who need to get to the solution of the power quality problem as quickly as possible so that they can minimize expensive downtime. The measurement process and display of data is optimized to get to the most important information as quickly as possible. Multiple parameters are measured simultaneously and displayed in formats that quickly describe the state of the power quality of the system. Data can be quickly accessed as simple digital values, trend graphs, waveforms, phasor diagrams or analyzed and organized into tabular format such as the event data where the magnitude, duration and time stamping enable rapid correlation to problems experienced.

AutoTrend - Quickly see the trend

Unique autotrend gives you fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process. You can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral.

The system - monitor overview screen

Instant insight into whether the voltage, harmonics, flicker, frequency and the number of dips and swells fall outside the set limits. A detailed list is given of all events falling outside the set limits.

PowerWave data capture

For some users, load switching is a cause of power quality problems. When loads switch on, the current draw sometimes causes the voltage to drop to a level that causes other equipment to malfunction. The PowerWave function a enables users to capture voltage, current and frequency signals simultaneously at a high speed to see which interaction is potentially causing problems. PowerWave goes beyond standard power quality measurements; PowerWave's fast data capture mode enables system dynamics to be characterized.

Waveforms for voltage and current are continuously captured for the specified time, and are displayed on screen in high detail; the power waveform is derived from the data. In addition, half-cycle RMS values for voltage, current, power and frequency can be stored and retrieved for analysis. This feature is particularly useful for testing of standby generation systems and UPS systems where reliable switch-on can be vital.

PowerWave data capture - quickly identify how motor and generator startups are impacting equipment performance
With PowerWave data capture you can capture three-phase high resolution voltage and current waveforms for up to five minutes along with detailed RMS voltage and current values. By analyzing the interaction of these values over time you can correlate the effects of voltage, current and frequency during the critical startup of motors and generators. PowerWave even goes beyond the standard power quality measurements allowing you to record half cycle rms values on 8 channels, frequency and instantaneous power (Vrms1/2, Arms1/2, W, Hz and scope waveforms for voltage, amps and watts).

Advanced power quality health

Advanced power quality health - at-a-glance power quality health data in real-time so you have the data you need, when you need it
This power analyzer utilize an integrated power quality health summary that gives you an at-a-glance view of a complete range of power quality issues in real time. With a simple graphical presentation, complete with tolerance limits, you can quickly discover which power quality problems may be present on your electrical system. If you don’t know where to start or what problems might exist the advanced power quality health summary will simplify the task.

Power inverter efficiency

Power inverters take DC current and transform it into AC current, or vice versa. Solar generation systems usually include an inverter that takes the DC energy from the solar cells and converts it to useful AC power. Inverters can lose performance over time and need to be checked. By comparing the input power with the output power you can determine the system efficiency. This energy analyzer can measure the efficiency of such inverters by simultaneously measuring the DC and AC power of a system to determine how much power is lost in the conversion process.

With a unique autotrend feature you can get fast insight into changes over time. Every displayed reading is automatically and continuously recorded without having to set up threshold levels or having to manually start the process So you can quickly view trends in voltage, current, frequency, power, harmonics or flicker on all three phases plus neutral.

Unified power measurement

Previously, only experts could calculate how much energy was wasted due to power quality issues; utilities could calculate the cost, but the required measurement process was beyond the reach of average electricians. With this patented unified power function you can use one handheld tool to determine how much power is being wasted, and calculate exactly what the extra consumption costs.

The patented unified power measurement system provides the most comprehensive view of power available, measuring:

  • Parameters of classical power (Steinmetz 1897) and IEEE 1459-2000
  • Detailed loss analysis
  • Unbalance analysis

These UPM calculations are used to quantify the fiscal cost of energy loss caused by power quality issues. The calculations are computed, along with other facility-specific information by an Energy Loss Calculator that ultimately determines how much money a facility loses due to wasted energy.

SystemMonitor - check performance against EN50160 with ease

The unique system-monitor gives you an overview of power system performance (there is no button or single function) and checks the compliance of incoming power to EN50160 limits or to your own custom specifications. The overview is shown on a single screen, with color-coded bars clearly indicating which parameters fall outside the limits.

Logging function allows you to customize measurement selections and provides instantaneous analysis of user-selectable parameters.

Measure and record power (W), VA and VARs, PF and energy consumption.

Track harmonics up to the 50th, and measure and record THD in accordance with IEC61000-4-7 requirements.

Fluke 435-II Specifications

Volt
Vrms (AC + DC) Measurement range: 1 to 1000 V phase to neutral
Resolution: 0.01 V
Accuracy: ±0.1% of nominal voltage1
Vpk Measurement range: 1 to 1400 Vpk
Resolution: 1 V
Accuracy: 5% of nominal voltage
Voltage Crest Factor (CF) Measurement range: 1.0 > 2.8
Resolution 0.01
Accuracy: ±5%
Vrms1/2 Resolution: 0.1 V
Accuracy: ±0.2% of nominal voltage
Amps
i430-Flex 1x Measurement range: 5 to 6000 A
Resolution: 1 A
Accuracy: ±0.5% ±5 counts
i430-Flex 10x Measurement range: 0.5 to 600 A
Resolution: 0.1 A
Accuracy: ±0.5% ±5 counts
1mV/A 1x Measurement range: 5 to 2000 A
Resolution: 1 A
Accuracy: ±0.5% ±5 counts
1mV/A 10x Measurement range: 0.5 to 200 A (AC only)
Resolution: 0.1 A
Accuracy: ±0.5% ±5 counts
i430-Flex Measurement range: 8400 Apk
Resolution: 1 Arms
Accuracy: ±5%
1mV/A Measurement range: 5500 Apk
Resolution: 1 Arms
Accuracy: ±5%
Click here for complete specifications on the Fluke 435-II

What's included with the Fluke 435-II

  • Power Quality and Energy Analyzer
  • 4 x 24" (61 cm) Flexible Current Probes
  • Test Lead & Alligator Clip Set
  • Clips and Regional Decals
  • 8 GB SD Card
  • USB Cable
  • Carrying Case
  • Power Adapter
  • International Plug Adapter Set
  • Single Capacity 28 Wh Li-Ion Battery
  • PowerLog on CD (Includes Operator Manuals in PDF Format)
Fluke 434-II Power Quality and Energy Analyzer Fluke 435-II Power Quality and Energy Analyzer Fluke 437-II Power Quality and Energy Analyzer
Model Fluke 434-II Fluke 435-II Fluke 437-II
Standard compliance IEC 61000-4-30 Class S IEC 61000-4-30 Class A IEC 61000-4-30 Class A
Volt Amp Hz
Dips and swells
Harmonics
Power and energy
Energy loss calculator
Unbalance
Monitor
Inrush
Event waveform capture
Flicker
Transients
Mains signaling
Power wave
Power inverter efficiency
400Hz
C1740 Soft Case
C437-II Hard Case with rollers
SD card (Max 32 GB) 8 GB 8 GB 8 GB

All models include the following accessories TL430 test lead set, 4 x i430 thin flexi current probes, BP290 battery, BC430 power adapter with international power adapter set, USB cable A-B mini and PowerLog CD.

Perform custom analysis and create reports with included software. Measurement data can also be exported to common spreadsheet programs.

Fluke Power Log Software Screen

Generate reports and view graphs with Fluke Power Log Software

Designed to quickly view recorded data, the included Power Log software displays all recorded parameters on interactive trends. Generate a professional report with the 'Report Writer' function, or copy and paste images into report document manually.

FlukeView Power Quality Analyzer Software (SW43W) offers you simple mouse-controlled tools to work with your Power Quality Analyzer.

The FlukeView software communicates with your Power Quality Analyzer via the optically isolated OC4USB adapter/cable connected to the USB of the PC. The OC4USB driver creates a virtual COM port. FlukeView will handle the USB port as a COM port.

  • Capture measurement screens for professional-looking reports
  • Log readings to your computer disk drive
  • Works with Windows® word processing, spreadsheet and analysis software
  • Windows® 3.1, Windows® 95 and Windows® NT compatible

Note:
The optional RS-232 adapter/cable PM9080 allows you to communicate via a COM port of your PC.

Fluke: Which Power Quality Tool do I need to do my job?


This video will teach the user how to select a power quality tool depending on their job. There are 3 kinds of power quality tools for 3 phases: loggers (Fluke 1736), trouble shooters (Fluke 435) or recorders (Fluke 1750).

How To Connect Using The Phasor Diagram On A Fluke 435 Series II Power Quality Analyzer


In this video, the user will learn how to turn on and configure their power quality and energy analyzer for the power network that they're working with. This instrument will also allow the user to Quickly understand the capacity of your existing electrical panels, troubleshoot circuit breaker trips and uncover and monetize energy costs.

Differences Between The Logging Capture Interval and Sample Rate on a Fluke 435 Series II


In this video, the viewer will learn the difference between a logging capture interval and a sample rate on this power quality and energy analyzer.

How To Perform A Logger Set-Up On The Fluke 435 Series II Power Quality Analyzer_


This video will serve as a tutorial on how to use the instruments logger function. The logger function allows the user to configure which measurements they would want to record and the document before beginning a power quality test.

How To Perform A Trend Configuration On The Fluke 435 Series II Power Quality Analyzer


In this video, the user will learn how to set up this three-phase power quality and energy analyzer for trending. Power quality issues may affect the operations of critical loads. Also, it may have a negative impact on the user's bottom line.

How To Check For Voltage Dips And Swells Using The Fluke 435


This video will teach the user how to set up their three-phase power quality and energy analyzer to measure dips and swells. Power quality issues may negatively impact the user's bottom line. Furthermore, these issues can as well affect the operations of critical loads.

How To Use A Harmonics Test In A Fluke 435 Power Quality Analyzer


This video will serve as a tutorial video that will teach the user how to use the harmonics test on this three-phase power quality and energy analyzer. One thing to keep in mind is that the event counter is always on. Therefore, even during a harmonics test, this instrument can still detect other voltage events.

How To Transfer Data From The Fluke 435 To The Power Log Software


There are a few ways to transfer the data to your computer. This video will show a step by step tutorial that will teach you how to transfer data from your 3-phase power quality and energy analyzer to the power log software using the SD card.

How To Perform A Transient Capture On The Fluke 435 II Power Analyzer


This video is a step by step tutorial on how to set this power quality and energy analyzer to capture transients. Additionally, this instrument helps locate, predict, prevent, and troubleshoot power quality problems in three-phase and single-phase power distribution systems.

Webinar: Introduction to Portable Precision Power Analyzers with Fluke


This wideband precision analyzer is accurate enough for the lab, yet it's built for the field. Offering you more freedom than ever before to make high accuracy power measurements wherever you need to. Whether in the lab, or in the field. Designed for portability and eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.
During our 1-hour webinar, we've covered:
- The new Fluke Norma 6000 Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is not a Power Quality Analyzer.
- It is a Power Analyzer for accurate measurements at frequencies from DC to 500kHz.
- It is designed to be used in the field, its rugged, battery-operated, lightweight, and suited to use outside of a laboratory environment.
- You’ll learn why it can help you, where and how it is used.

Click on a category to view a selection of compatible accessories with the Fluke 435-II Power Quality and Energy Analyzer.

Fluke BC430 Line Voltage Adapter/Battery Charger BC430/830
Universal plug-in battery charger and line power wall transformer for 430X Series power quality analyzers and 120B Series ScopeMeters.




Fluke BP291 Double Capacity Li-Ion Battery Pack BP291
For Fluke 43X power quality analyzers and 190-series ScopeMeters.




Fluke EBC290 External Battery Charger EBC290
External battery charger for Li-ion batteries for 190B and 120B Series ScopeMeters and power quality analyzers.




Fluke WC100 multi color wire clips WC100
For use with Fluke 430-Series power quality analyzers.




Fluke AC285 SureGrip™ Alligator Clips AC285
Designed to improve steadiness in slippery hands, and is for use with TL222 and TL224 test leads. Rubber over-molded surfaces and finger-hugging curves give a comfortable, reliable grip so you can focus on making an accurate measurement.




Fluke i6000s Flex-24 AC Current Probe I6000S-FLEX-24
Flexible 24" 6000A AC current probe with BNC terminated lead.




Fluke i310s Current Probe I310S
AC/DC Clamp. Features a range of 30A and 300A AC & 45A and 450A DC.




Fluke i30s AC/DC Current Clamp I30S
30A AC/DC current clamp with BNC terminated lead.




Fluke i5sPQ3, 5A AC Current Clamps, 3-pack I5SPQ3
A pack of 3 pieces of the i5s current clamps, specially configured to provide low current accuracy while taking measurements on secondary current transformers.




Fluke i5S AC Current Clamp 5A I5S
5A Clamp-on CT for Fluke 434. Part # i5S.




Fluke i400S AC Current Clamp I400S
For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.




Fluke HH290 Hanging Hook HH290
Hanging Hook for ScopeMeter 190-Series II.




Ask a question about Fluke 435-II Power Quality and Energy Analyzer

Customer Reviews for the Fluke 435-II

More Fluke Products
