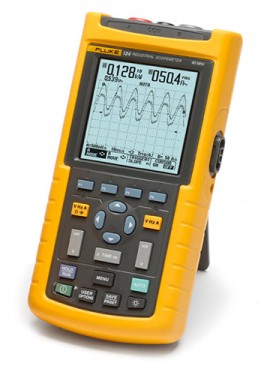

Fluke 124 Industrial ScopeMeter

Model: 124/003 | UPC: 095969234375

Be the first to review this product

Downloads: datasheet manual

Fluke 124 Industrial ScopeMeter

Model: 124/003

Be the first to review this product

102mm monochrome LCD, 40MHZ; 20 Recordings.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 124B Industrial ScopeMeter Hand-Held Oscilloscope, 40 MHz

Model: 124B | Order No: 124B/NA

Work with confidence with the oscilloscope that offers simplified testing, more insight, faster electro-mechanical troubleshooting, and comes with 40 MHz of bandwidth. Conveniently measures voltage, power waveforms and automatically displays critical numerical readings.

Learn More

Recommended Accessories

Fluke TL220 Suregrip Industrial Test Lead Set

TL220

Fluke C101 Hard Carrying Case

C101

Fluke 80TK Thermocouple Module

80TK

Fluke i200s AC Current Clamp

I200S

Fluke 124/003 Offers

An everyday, easy-touse dual scope, meter and paperless recorder for industrial equipment service, maintenance and installation applications.

Display complex waveforms, determine industrial bus health or measure harmonics and power on industrial machinery.

Features

Dual-input TrendPlot™ paperless recorder plots and displays the actual ,minimum, maximum and average of any measurement up to 16 days with a resolution of 1.5 hours
Connect-and-View™ advanced triggering that recognizes signal patterns and automatically sets up and continuously adjusts triggering time base and amplitude
Measurements include: Vdc, Vac, Vac+dc, Vpeak max, Vpeak min, Vpeak to peak, frequency, positive and negative pulse width, positive and negative duty cycle, Aac, Adc, Aac+dc (with optional probe), phase, temperature (with optional probe), dBV, and dBm into 50Ω and 600Ω
Shielded test leads for oscilloscope, resistance and continuity measurements
Cursor measurements
Full bandwidth, VPS40 10:1 40 MHz probe included
Memory save and recall of 20 instrument screens with user set-ups and user text
600V CAT III safety certified
Optically isolated RS-232 interface
Up to seven hours battery operation
Rugged compact case, IP51 drip and dust proof
Industrial Networks bus health testing (125)
Measure harmonics and power, VA, VAR, W, PF (125)

Functional Specifications

Display: 10.2 cm monochrome LCD
Bandwidth: 40
Number of inputs: 2; optional isolated external Trigger through ITP120
True-rms multimeter: Dual fully featured 5000 counts DMM
Dual input TrendPlot: Yes, with cursors
Trigger types: Connect-and-View™, free run, single shot, edge, video
Scope Envelope mode: Yes
Scope measurements: Cursors +26 automatic measurements
Bus Health Test function: For standard industry buses
Waveform mathematics: Harmonics mode

General Specifications

Power measurements: Power, VA, VAR, PF, Vpwm
Memory (screens/set-ups): 20
Safety certified (EN61010-1): 600 V CAT III (instrument and included accessories)

What's included with the Fluke 124/003

Fluke AC120 Alligator clips
Fluke BB120 Shielded BNC adapter
Fluke VPS40 Voltage Probe, 40 MHz, 10:1
Getting started booklet
Fluke HC120 Hook Clips
Fluke PM8907 Battery Charger/Line Voltage Adapter
Fluke STL120 Shielded Test Lead Set
Fluke BP120 MH
User manual (CD-ROM)

Software comes with the Fluke 124S ScopeMeter with SCC120 kit helps you get more out of your ScopeMeter by:

Documenting: Transfer screens, waveforms, and measurement data from the ScopeMeter to your PC for printing, or to import data to other programs.
Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.
Analysis: Gather valuable measurement data and enable cursor measurements to reveal relationships and conditions. Extended recording of up to four user-selected measurements help you monitor and analyze slow moving signals and related events. Upload waveforms to the PC and use cursors for detailed measurements. Perform waveform analysis, including analyzing harmonics.

datasheet for the Fluke 124 Industrial ScopeMeter manual for the Fluke 124 Industrial ScopeMeter
