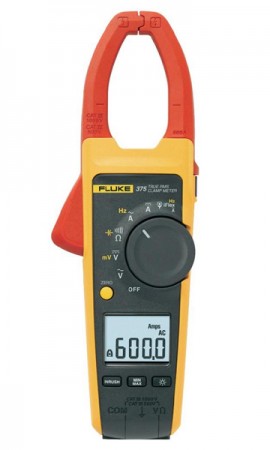

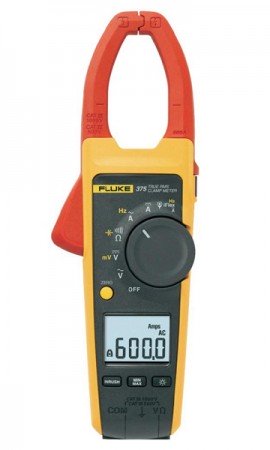

Fluke 375 True-RMS 600A AC/DC Clamp Meter

Model: 375 | UPC: 095969558563

Downloads: datasheet manual

Fluke 375 True-RMS 600A AC/DC Clamp Meter

Model: 375

True RMS, 600A AC/DC, 600V AC, mV DC, Resistance, Continuity, Frequency, MIN/MAX/AVG. Works with iFlex flexible current probes.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 375 FC True RMS AC/DC Clamp Meter, 600 A, 1000 V

Model: 375 FC | Order No: 375FC

Measure very low and very high resistance with this True RMS AC/DC clamp meter. It features a VFD low-pass filter which provides accurate motor drive measurements and is ideal for troubleshooting non-linear signals. Additionally, this instrument is compatible with the Fluke Connect application and iFlex flexible current probe.

Learn More

Recommended Accessories

Fluke i2500-10 iFlex Flexible 10" Current Probe

i2500-10

Fluke C1600 Meter and Accessories Gear Box

C1600

Fluke TL224 SureGrip Silicone Insulated Test Leads

TL224

Fluke TL223 SureGrip Electrical Test Lead Set

TL223

Fluke AC89 Heavy Duty Insulation Piercing Test Clip

AC89

Fluke i2500-18 iFlex Flexible Current Probe, 18"

i2500-18

Fluke 375 Offers

True-rms ac voltage and current for accurate measurements on non-linear signals
500 mV DC measurement range to interface with other accessories
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing protective equipment
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Specifications:

AC current via jaw

Range: 600 A
Resolution: 0.1 A
Accuracy: 2 % ± 5 digits

AC current via iFlex™ (optional)

Range: 2500 A
Resolution: 0.1 A
Accuracy: 3 % ± 5 digits

DC current

Range: 600 A
Resolution: 0.1 A
Accuracy: 2 % ± 5 digits

AC voltage

Range: 600 V
Resolution: 0.1 V
Accuracy: 1.5 % ± 5 digits

DC voltage

Range: 600 V
Resolution: 0.1 mV
Accuracy: 1 % ± 5 digits

Resistance

Range: 60,000 Ω
Resolution: 0.1 Ω
Accuracy: 1 % ± 5 digits

Frequency

Range: 500 Hz
Resolution: 0.1 Hz
Accuracy: 0.5 % ± 5 digits

Capacitance

Range: 1 µF to 1000 µF
Resolution: 1 µF
Accuracy: 1 % ± 4 digits

General Specifications

Diameter of measurable conductor: 0.13" or 34 mm max
Size: 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight: 388g, (14 oz.)

Fluke 375 Specifications

Electrical Specifications
AC Current via Jaw
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ± 5 digits (10-100 Hz) 2.5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A 2.5 @ 600 A Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range	2500 A
Resolution	0.1 A (≤ 600 A) 1 A (≤ 2500 A)
Accuracy	3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)	3.0 at 1100 A (375 and 376 only) 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
DC Current
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ± 5 digits
AC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1% ± 5 digits
Frequency via Jaw
Range	5.0 - 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 10 Hz, ≥10 A
	10 – 100 Hz, ≥5 A
	100 – 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range	5.0 - 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ± 5 digits
Trigger Level	5 – 20 Hz, ≥ 25 A
	20 – 100 Hz, ≥ 20 A
	100 – 500 Hz, ≥ 25 A
Resistance
Range	60 kΩ
Resolution	0.1 Ω (≤ 600 Ω) 1 Ω (≤ 6000 Ω) 10 Ω (≤ 60 kΩ)
Accuracy	1% ± 5 digits
Capacitance
Range	1000 µF
Resolution	0.1 µF (≤ 100 µF) 1 µF (≤ 1000 µF)
Accuracy	1% ± 4 digits
Mechanical Specifications
Size (L x W x H)	246 mm x 83 m x 43 mm
Weight	388g (14 oz.)
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)	1.8 m
Environmental Specifications
Operating Temperature	-14 to 122°F (10°C to 50°C)
Storage Temperature	-40 to 140°F(-40 to 60°C)
Operating Humidity	≤ 90% RH @ 10°C – 30°C, ≤ 75% RH @ 30°C – 40°C, ≤ 45% RH @ 40°C – 50°C
Operating Altitude	0 to 3000 m
Storage Altitude	12,000 meters
EMC	EN 61326-1:2006
Temperature Coefficients	0.01% °C (<18°C or >28°C)
Warranty	Three years for electronics One year for cable and clamp assembly

Click here for complete specifications on the Fluke 375

What's included with the Fluke 375

Coated instruction card
Safety information sheet
Soft carrying case
TL75 test leads
Two AA Alkaline batteries

How To Select The Best Fluke Clamp Meter

This video will provide a brief overview of a few Fluke clamp meters. This will allow users to get some insight into which meter they need to complete their job based on their specifications.

datasheet for the Fluke 375 True-RMS 600A AC/DC Clamp Meter manual for the Fluke 375 True-RMS 600A AC/DC Clamp Meter
