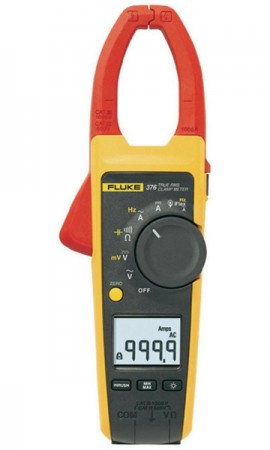

Fluke 376 True-RMS 1000A AC/DC Clamp Meter with iFlex

Model: 376 | UPC: 095969558570

Downloads: datasheet manual

Fluke 376 True-RMS 1000A AC/DC Clamp Meter with iFlex

Model: 376

AC/DC Clamp Meter with backlight (TRMS, 1000AAC/DC, 1000VAC, Continuity, Frequency, MIN/MAX, mV DC) and up to 2500A AC with the included 18" iFlex flexible current probe.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

Model: 376 FC | Order No: 376FC

Ideal for a wide range of current measurement situations, this True RMS clamp meter also comes equipped with the iFlex™ flexible current probe which increases flexibility and measures awkward sized conductors. Additionally, this tool can read up to 1000 V and 1000 A in both ac and dc modes.

Learn More

Recommended Accessories

Fluke i2500-18 iFlex Flexible Current Probe, 18"

i2500-18

Fluke i2500-10 iFlex Flexible 10" Current Probe

i2500-10

Fluke C1600 Meter and Accessories Gear Box

C1600

Fluke TL224 SureGrip Silicone Insulated Test Leads

TL224

Fluke TL223 SureGrip Electrical Test Lead Set

TL223

Fluke AC89 Heavy Duty Insulation Piercing Test Clip

AC89

Fluke 376 Offers

True-rms ac voltage and current for accurate measurements on non-linear signals
Min, max, average and inrush recording to capture variations automatically
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing protective equipment
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Three-year warranty
Soft carrying case

Specifications:

Diameter of measurable conductor: 01.3" or 34 mm max
Size: 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight: 388g, (14 oz.)

True-rms ac voltage and current for accurate measurements on non-linear signals
Min, max, average and inrush recording to capture variations automatically
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing protective equipment
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Three-year warranty
Soft carrying case

Specifications:

Diameter of measurable conductor: 01.3" or 34 mm max
Size: 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight: 388g, (14 oz.)

Fluke 376 Specifications

Specifications
Diameter of measurable conductor	01.3" or 34 mm max
Operating temperature	-14 to 122°F (-10 to 50°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Operating Humidity	< 90% @ 10 to 30 °C, < 75% @ 30 to 40°C
Operating Altitude	0 to 3000 m
Size	246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
Weight	388g, (14 oz.)
Temperature Coefficient	0.01% °C (<18°C or > 28°C)
Warranty	Three years for electronics One year for cable and clamp assembly

Specifications
i2500-18 and i2500-10	Range	Resolution	Accuracy
AC Current*	2500 A	0.1 A	3% ± 5 digits**
Frequency*	500 Hz	0.1 Hz	0.5% ± 5 digits
External magnetic field rejection (with cable >10 cm from the coupling)	40 dB
Inrush*	Yes
Safety rating	CAT III 1000 V, CAT IV 600 V

Position Sensitivity Specifications
Distance from Optimum	i2500-10	i2500-18	Additional iFlex error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)td>	± 0.5%
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0%
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0%

Click here for complete specifications on the Fluke 376

What's included with the Fluke 376

18-inch iFlex flexible current probe - {{link('i2500-18', 'http://www.myflukestore.com/p8229/fluke_i2500-18.php', {'class' : '', 'target' : '_blank', 'style' : ''})}}
{{link('TL75', 'https://www.myflukestore.com/product/fluke-tl75-test-lead-set', {'class' : '', 'target' : '_blank', 'style' : ''})}} test leads
Coated instruction card
Safety information sheet
Soft carrying case
Two AA Alkaline batteries

18-inch iFlex flexible current probe - i2500-18
TL75 test leads
Coated instruction card
Safety information sheet
Soft carrying case
Two AA Alkaline batteries

How To Set Up the Fluke iFlex Flexible Current Probe

This video is designed to demonstrate how to set up and use your Fluke iFlex flexible current probe. It provides users to capability to take measurements in tight areas. Additionally, it is compatible with a variety of Fluke products.

Using the Fluke iFlex Flexible Current Probe in Tight Areas

This video demonstrates how this flexible current probe is used for awkward and tight spaces. For this specific scenario, it is paired with the Fluke 381. Additionally, it is also compatible with a variety of Fluke products.

Using the Fluke iFlex Flexible Current probe with the Fluke 376 FC True RMS Clamp Meter

This video demonstrates the versatility of the Fluke iFlex flexible current probe. Additionally, it is compatible with a variety of Fluke meters.

Fluke 376 TRMS AC/DC Clamp Meter with iFlex Flexible Current Probe: Overview

This video will demonstrate how the iFlex flexible current probe can expand the capabilities of this TRMS AC/DC clamp meter. Additionally, users can measure this instrument is compatible with the Fluke Connect app as well.

How to Select a Fluke Clamp Meter

In this video, the user will receive tips on how to select the right clamp meter. Additionally, clamp meters help plant maintenance, process technicians, electricians and utility maintenance professionals alike to conduct troubleshooting and general maintenance in a wide variety of applications.

Getting to know the Fluke 376 FC True RMS AC/DC Clamp Meter with iFlex

This video will serve as an overview of the Fluke 376 FC True RMS AC/DC Clamp Meter. The iFlex™ current probe can expand the capabilities of the clamp meter by getting into hard-to-reach places.
